M8 Half Moon Connector for Beds FI 35 MM

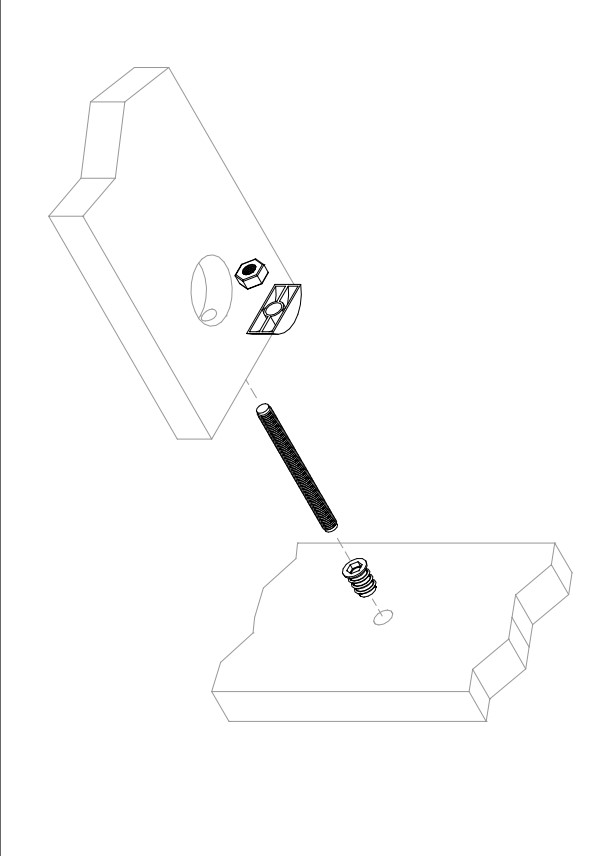

Half Moon connector for beds, ver. M8 is designed for bed assembly. The connection system is based on a hook with metric thread – which is screwed directly into the top of the bed or a wooden leg, insert nut with M8 metric thread. In bed’s side beam a hole ø 35MM should be drilled. After that connection system is fastened by using 13MM/M8 spanner. Thanks to connectors simple construction can be easily adjusted – by using a longer threaded rod or insert nut, especially in weaker materials like chipboard, birch or pine.

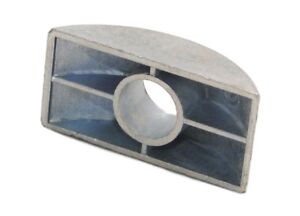

ONE SET CONSISTS OF: THREADED ROD M8 x 80MM, INSERT NUT M8 x 17MM, HALF MOON WASHER, M8 NUT
Diameter: 35 MM
Finishing: Zinc Plated
If you cart 1 you get a choice of 1 / 10 / 100 connectors.
